Supercomm (ShanDong) Co., Ltd.

Products

: 1X9

◆1X9 Footprint◆Comply with SDH/SONET◆FP/VCSEL or DFB laser◆Duplex SC/FC/ST Connector◆Wide Distance Supported from 550m to 120km◆Compliant with EMI, ESD and RoHS-6 requirements◆Single 3.3V Power Supply ◆Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant◆Operating Case Temperature Standard: 0°C~+70°C and Industrial: -40°C~+85°C
MORE+

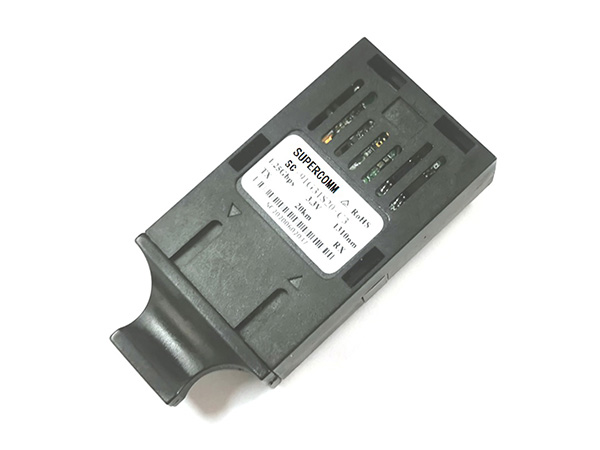

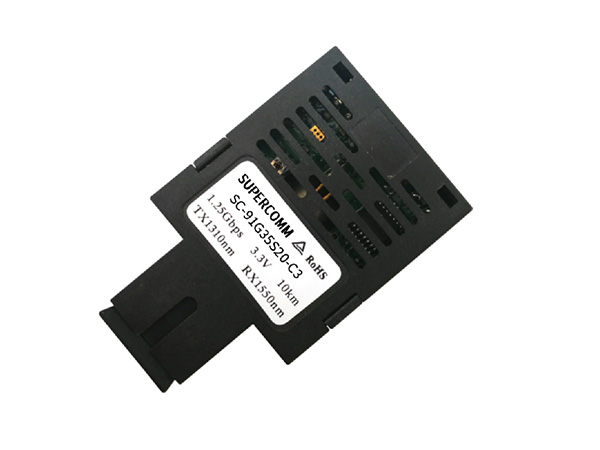

: 1X9 BIDI

◆1X9 BIDI Footprint◆Comply with SDH/SONET◆FP/VCSEL or DFB laser◆Single SC/FC/ST Connector◆Wide Distance Supported from 550m to 120km◆Compliant with EMI, ESD and RoHS-6 requirements◆Single 3.3V Power Supply ◆Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant◆Operating Case Temperature Standard: 0°C~+70°C and Industrial: -40°C~+85°C
MORE+

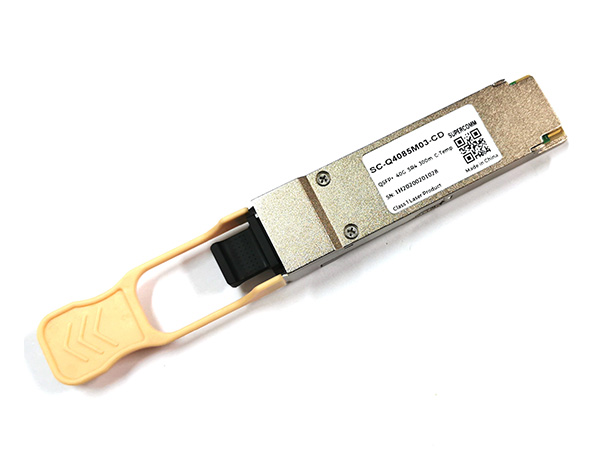

: QSFP+

◆ Hot-pluggable QSFP+ form factor◆ Compliant with the QSFP+ MSA, IEEE 802.3 and OTN standard◆ 4 independent full-duplex channels◆ Up to 11.2Gbps per channel bandwidth◆ Aggregate bandwidth of > 40Gbps◆ QSFP MSA compliant◆ VCSEL/DFB/EML transmitter◆ Built-in digital diagnostic functions◆ Duplex LC receptacles/Single MPO-12 receptacle◆ Single +3.3V power supply operating◆ TX input and RX output CDR retiming◆ Case operating temperature: 0°C to+70°C, -40°C to+85°C◆ RoHS-6 Compliant
MORE+

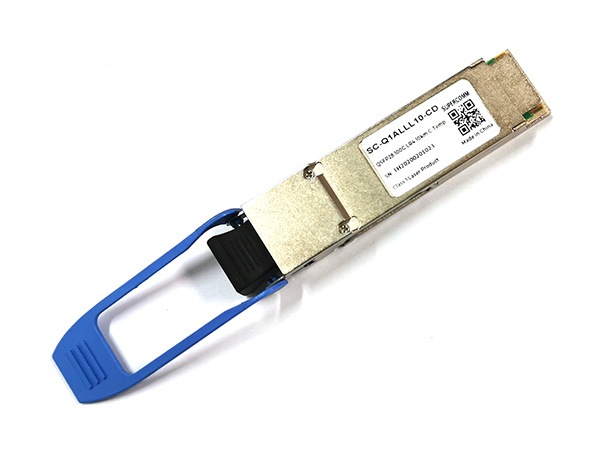

: QSFP28

◆ Hot-pluggable QSFP28 form factor◆ Compliant with the QSFP28 MSA and IEEE P802.3ba ◆ 4 channels full-duplex transceiver modules◆ Up to 28Gb/s per channel, 112Gb/s aggregate bit rate◆ Support InfiniBand EDR◆ Single 3.3V power supply◆ 4x25Gb/s VCSEL/DFB/EML transmitter◆ 4x25G electrical interface◆ Built in full digital diagnostics functions◆ I2C management interface◆ Maximum link length of 40km on SMF/100m on MMF◆ Power dissipation<5W◆ Case operating temperature: 0°C to+70°C, -20°C to+80°C◆ RoHS-6 Compliant
MORE+

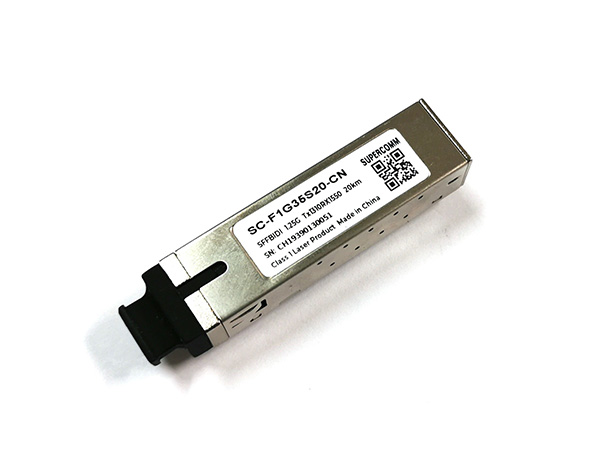

: SFF BIDI

◆SFFBIDI Footprint◆Comply with SDH/SONET◆FP/VCSEL or DFB laser◆Single LC or SC Connector◆Built-in Digital Diagnostic Functions◆Wide Distance Supported from 550m to 120km◆Compliant with EMI, ESD and RoHS-6 requirements◆Single 3.3V Power Supply and LVTTL Logic Interface◆Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant◆Operating Case Temperature Standard: 0°C~+70°C and Industrial: -40°C~+85°C
MORE+

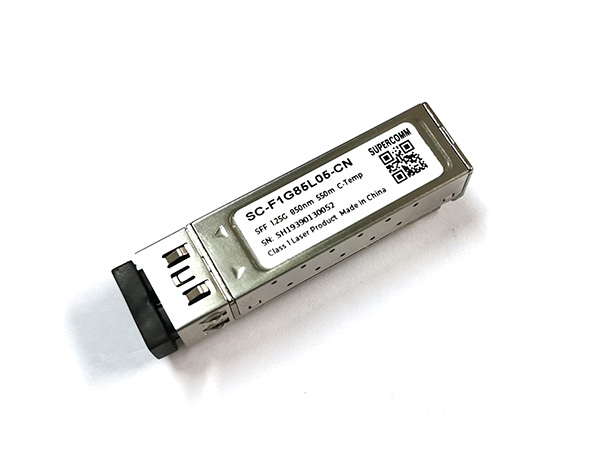

: SFF

◆SFF Footprint◆Comply with SDH/SONET◆FP/VCSEL or DFB laser◆Duplex LC Connector◆Built-in Digital Diagnostic Functions◆Wide Distance Supported from 550m to 120km◆Compliant with EMI, ESD and RoHS-6 requirements◆Single 3.3V Power Supply and LVTTL Logic Interface◆Interface Class 1 FDA and IEC60825-1 Laser Safety Compliant◆Operating Case Temperature Standard: 0°C~+70°C and Industrial: -40°C~+85°C
MORE+

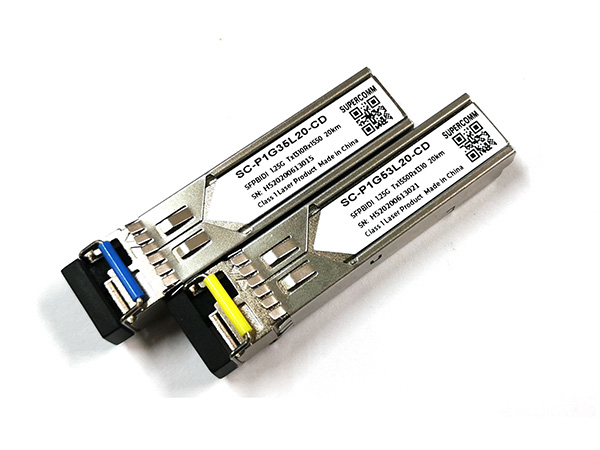

: SFP BIDI

◆ Single Fiber Bi-directional Transmission◆ Hot-pluggable SFP Footprint◆ Single LC or SC Connector optional◆ Wide Distance Supported from 2km to 120km◆ Built-in Digital Diagnostic Monitor function◆ Metal Enclosure for Lower EMI◆ Comply with SFP MSA◆ Comply with SDH/SONET◆ Comply with IEEE Std 802.3◆ Single +3.3V Power Supply◆ RoHS-6 Compliant◆ Case operating temperature :0°C to+70°C, -40°C to+85°C
MORE+

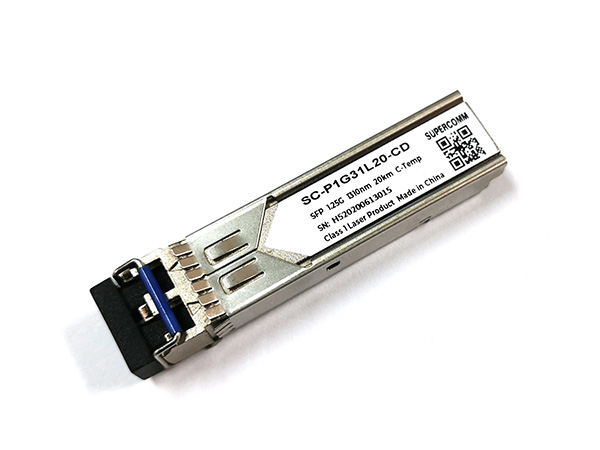

: SFP

◆ Hot-pluggable SFP Footprint◆ Dual LC Connector◆ Wide Distance Supported from 20KM to 120km◆ Built-in Digital Diagnostic Functions◆ Metal Enclosure for Lower EMI◆ Comply with SFP MSA◆ Comply with SDH/SONET◆ Comply with IEEE Std 802.3◆ Single +3.3V Power Supply◆ RoHS-6 Compliant◆ Case operating temperature :0°C to+70°C, -40°C to+85°C
MORE+

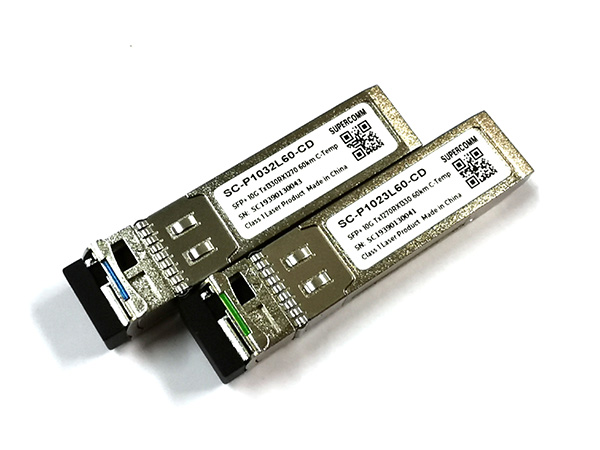

: SFP+ BIDI

◆ Up to11.3Gb/s data links◆ Hot-pluggable SFP+ footprint◆ BIDI LC/UPC type pluggable optical interface◆ Metal enclosure, for lower EMI◆ Meet ESD requirements resist 8KV direct contact voltage◆ RoHS compliant and lead-free◆ Support Digital Diagnostic Monitoring interface◆ Single +3.3V power supply◆ Compliant with SFP+ MSA and SFF-8472/INF-8077i◆ Case operating temperature : 0°C to+70°C, -40°C to+85°C
MORE+

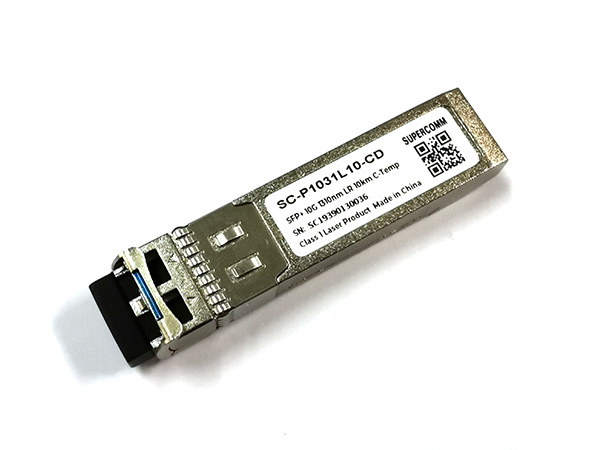

: SFP+

◆ Up to11.3Gb/s data links◆ Hot-pluggable SFP+ footprint◆ Duplex LC/UPC type pluggable optical interface◆ Metal enclosure, for lower EMI◆ Meet ESD requirements, resist 8KV direct contact voltage◆ RoHS compliant and lead-free◆ Support Digital Diagnostic Monitoring interface◆ Single +3.3V power supply◆ Compliant with SFP+MSA and SFF-8472◆ Case operating temperature : 0°C to+70°C, -40°C to+85°C
MORE+

﹤﹥

1X9
